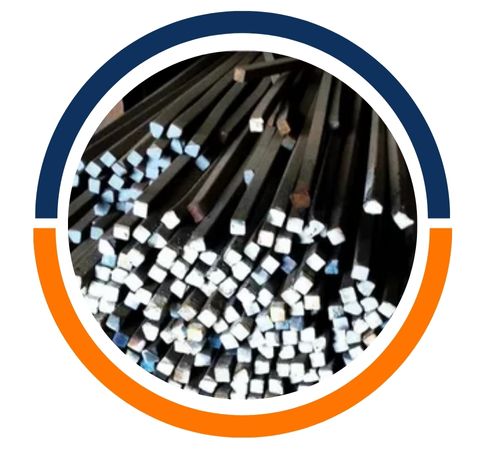

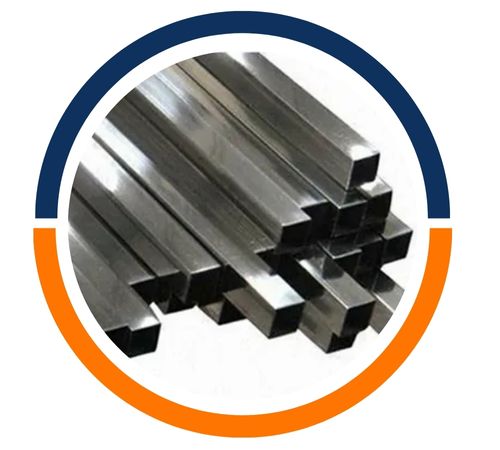

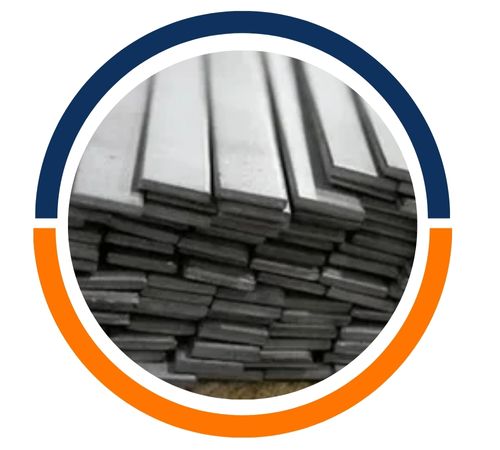

Carbon Steel EN-9 Bars are a type of medium carbon steel that stands out for its impressive strength, wear resistance, and good machinability. Shalan Steel, a trusted supplier and manufacturer located in Kuala Lumpur, Malaysia, provides top-notch EN-9 round, square, and flat bars tailored for engineering and industrial applications. These bars find their way into various sectors, including automotive, construction, machinery, and tooling. Shalan Steel is committed to producing items that meet precise tolerances and mechanical standards, ensuring reliable performance every time. With quick delivery, expert technical support, and competitive pricing, Shalan Steel is dedicated to offering dependable steel bar solutions to customers throughout Malaysia and Southeast Asia.
Typically, EN-9 bars are crafted from medium carbon steel, featuring a carbon content of around 0.50% and manganese levels up to 0.80%. This specific composition results in a tensile strength ranging from 550 to 700 MPa and a yield strength of about 300 to 400 MPa, depending on the heat treatment applied. EN-9 steel is known for its good wear resistance and can be hardened using heat treatment techniques like quenching and tempering. It also maintains decent machinability and can be welded effectively with the right preheating and post-weld treatment. EN-9 is usually available in black or bright bar finishes, offered in normalized, annealed, or hardened and tempered states.
| Grade | 070M55 / EN-9 |
|---|---|
| Specification | BS 970 1991 |
| Round Bar Size | Diameter: 3-~800mm |
| Square Bar size | 4 to 100mm |
| Flat Bar Size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Hex Bar Size | 2-100mm A/F |
| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Angle Bar Size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Section | 3.0 to 12.0mm thickness |
| Billet Size | 1/2″ to 495mm Diameter |
| Finish | Cold (bright) drawn, centreless ground,smooth turned, Rough Turned, Bright, peeled, hot rolled, hot rolled annealed, slit rolled edge, Polish, Grinding, Centreless Ground & Black |
| Tolerance | K9, K10, K11, K12, H8, H9, H10, H11, H12, H13, or as per clients’ requirements |
| Surface | Polished, Bright, Cold Drawn, Hot Rolled Pickled, Sand Blasting Finished, Hairline |
| Condition | Hardened & Tempered, Annealed |
| Technique | en9 Hot Rolled, Cold Rolled, Cold Drawn, Forged Round Bar, Rods |
| Processing | Bar cutting to 650mm |
| Form | en9 Welding Rod, Round, Round Rod, Rings, Hollow, Rod, T-Bar, Channel Bar, Flat Bar, Square, Blocks, Precision Ground Bar, Triangle, Rectangle, Hex (A/F), Threaded, Ingot, I/H Bar, Half Round Bar, Profiles, Billet, Forging etc. |
| Grade | Cr | C | Ni | Si | S | Mn | P | Mo |
| EN – 9 | – | .50 – .60 | – | .05 – .35 | .040 MAX | .50 – .80 | .040 MAX | – |
| Heat Treatment | Condition Tons/SQ.inch | Tensile Stress RE MPA | RP0.2 MPA | A min on 5.65so | Impac | Hardness HB | Limited Ruling Section mm | |
| IZODFT.L.b | KCV Joules | |||||||
| Normalise | 45 | 700 | – | 12 | – | – | 201-255 | 63 |
| 39 | 600 | – | 13 | – | – | 170/223 | 250 | |
| R | 45/55 | 700/850 | 385 | 14 | – | – | 201/277 | 100 |
| S | 50/60 | 775/925 | 450 | 14 | – | – | 223/277 | 63 |
| T | 55/65 | 850/1000 | 555 | 12 | – | – | 248/302 | 19 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Size (ins) | 1/2 | 9/16 | 5/8 | 3/4 | 7/8 | 1 | 1 1/8 | 1 1/4 | 1 3/8 | 1 1/2 | 1 3/4 | 1 7/8 | 2 | 2 1/8 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 | 3 | 3 |
| Size (mm) | 32 | 40 | 45 | 50 | 55 | 65 | 70 | 75 | 80 | 85 | 90 | 95 | 100 | 110 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 120 | 125 | 130 | 140 | 150 | 160 | 180 | 190 | 200 | 220 | 280 |
Carbon Steel EN-9 Bars find extensive application in the production of parts that need to be highly strong and durable. They are used in the production of automotive components like shafts, axles, gears, and crankshafts, among other mechanical parts such as coupling rods and bushings. EN-9 steel is also used in the manufacture of heavy machinery, agricultural equipment, and structural components where wear resistance and ruggedness are required. The malleability of the steel allows for use in both forging as well as machining applications, providing reliability under high-stress situations. Its ability to withstand mechanical endurance and long-term performance makes it most desirable in the engineering industry.
