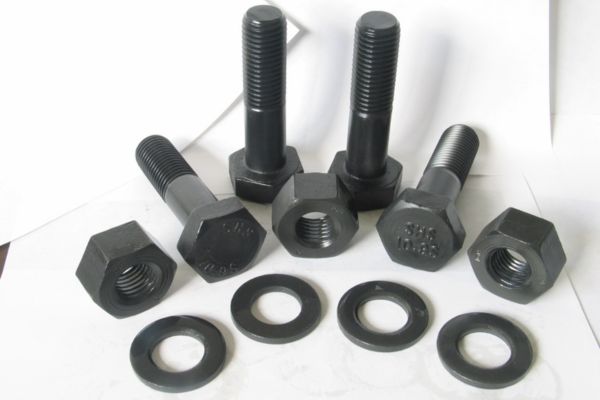

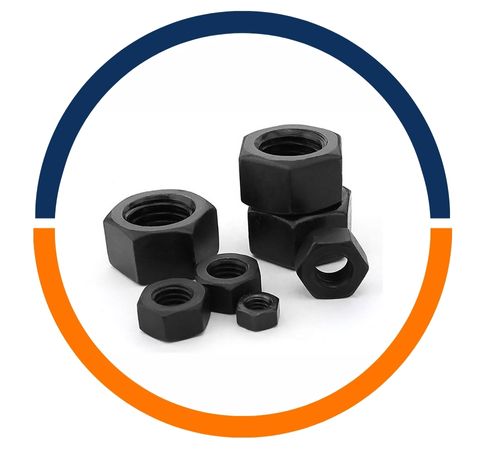

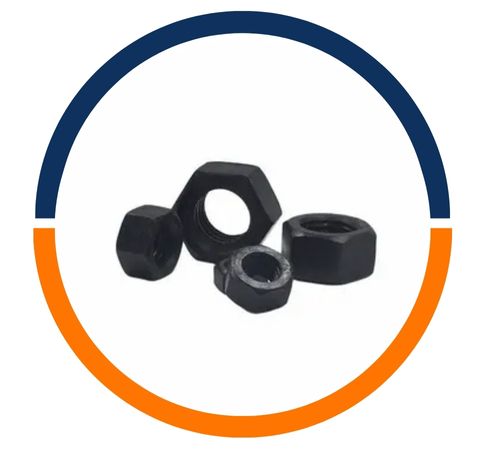

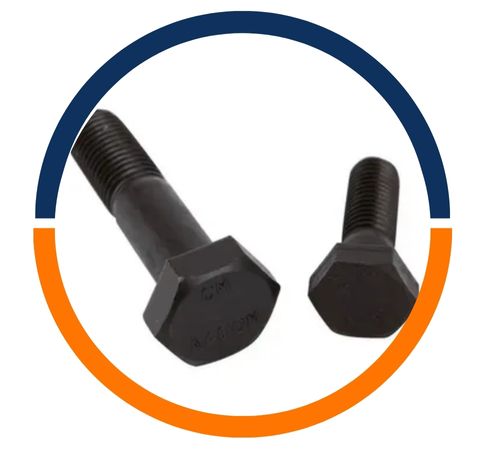

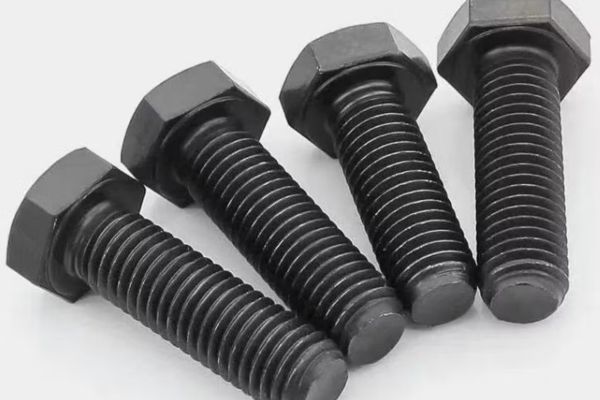

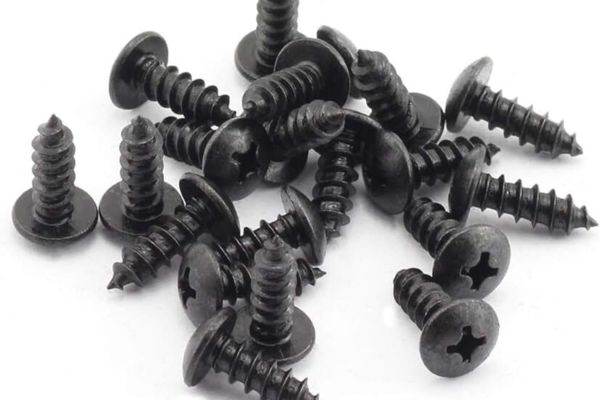

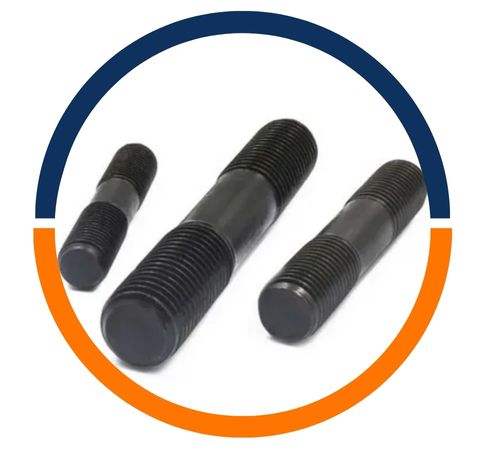

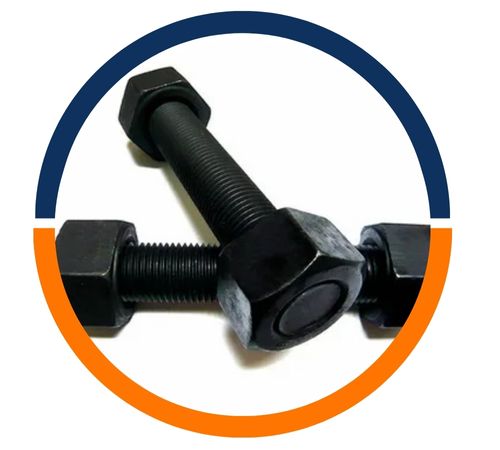

Carbon Steel 12.9 Fasteners are incredibly strong fasteners crafted for those critical applications where you need top-notch tensile strength, precision, and reliability. Shalan Steel, a reputable manufacturer and supplier based in Kuala Lumpur, Malaysia, provides a diverse selection of Grade 12.9 fasteners, including bolts, screws, studs, and nuts. These fasteners are widely used across Malaysia and Southeast Asia in various industries like automotive, aerospace, machinery, and structural engineering.
Made from alloyed carbon steel that undergoes quenching and tempering, Grade 12.9 fasteners boast remarkable mechanical strength. They deliver a minimum tensile strength of 1220 MPa and a yield strength of at least 1100 MPa. Manufactured in line with ISO 898-1 standards, these fasteners ensure excellent fatigue resistance, precise dimensions, and high hardness, making them perfect for extreme load conditions and tight tolerances.
| Carbon Steel 12.9 | C | P | S | B |
| 0.28-0.5 | 0.025 | 0.025 | 0.003 |
| Nominal thread diameter size range [mm] | Proof strength [MPa] | Yield strength (min) [MPa] | Tensile strength (min) [MPa] | Hardness [Rockwell] |
| 1.6–100 | 970 | 1100 | 1220 | C39–44 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Carbon Steel 12.9 Fasteners shine in high-performance applications such as engine components, heavy construction machinery, precision equipment, and high-pressure systems. Their impressive strength-to-size ratio, durability, and ability to handle intense vibrations and mechanical stress make them the go-to choice where safety, efficiency, and reliability are paramount. Plus, surface coatings like black oxide or zinc plating boost their corrosion resistance and longevity even further.
| DIA | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 | M27 | M30 | M33 | M36 | M39 | M42 | M45 | M48 | M52 |
| Pitch | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | ||||||||
| Grade A upto length | 40 | 50 | 60 | 80 | 100 | 120 | 140 | 150 | Grade A not applicable to these dia’s | ||||||||||||
| Head Across Flat (S) Nom = Max Min Grade A Grade B | 7 | 8 | 10 | 13 | 16 | 18 | 21 | 24 | 27 | 30 | 34 | 36 | 41 | 46 | 50 | 55 | 60 | 65 | 70 | 75 | 80 |
| 6.78 | 7.78 | 9.78 | 12.73 | 15.73 | 17.73 | 20.67 | 23.67 | 26.67 | 29.67 | 33.38 | 35.38 | Grade A not applicable to these dia’s | |||||||||
| 6.64 | 7.64 | 9.64 | 12.57 | 15.57 | 17.57 | 20.16 | 23.16 | 26.16 | 29.16 | 33 | 35 | 40 | 45 | 49 | 53.8 | 58.8 | 63.1 | 68.1 | 73.1 | 78.1 | |
| Head Height (K) Nom Tol + or – Grade A Grade B | 2.8 | 3.5 | 4 | 5.3 | 6.4 | 7.5 | 8.8 | 10 | 11.5 | 12.5 | 14 | 15 | 17 | 18.7 | 21 | 22.5 | 25 | 26 | 28 | 30 | 33 |
| 0.125 | 0.15 | 0.18 | 0.215 | Grade A not applicable to these dia’s | |||||||||||||||||
| 0.2 | 0.24 | 0.29 | 0.35 | 0.42 | 0.5 | ||||||||||||||||
| Across corners e Min Grade A Grade B | 7.66 | 8.79 | 11.05 | 14.38 | 17.77 | 20.03 | 23.36 | 26.75 | 30.14 | 33.53 | 37.72 | 39.98 | Grade A not applicable to these dia’s | ||||||||
| 7.5 | 8.63 | 10.89 | 14.2 | 17.59 | 19.85 | 22.78 | 26.17 | 29.56 | 32.95 | 37.29 | 39.55 | 45.2 | 50.85 | 55.37 | 60.79 | 66.44 | 71.3 | 76.95 | 82.6 | 88.25 | |
| Major Dia at thread (min) | 3.838 | 4.826 | 5.794 | 7.76 | 9.732 | 11.701 | 13.682 | 15.682 | 17.623 | 19.623 | 21.623 | 23.577 | 26.577 | 29.522 | 32.522 | 35.465 | 38.465 | 41.437 | 44.437 | 47.399 | 51.399 |
| Major Dia at thread (max) | 3.978 | 4.976 | 5.974 | 7.972 | 9.968 | 11.966 | 13.962 | 15.962 | 17.958 | 19.958 | 21.958 | 23.952 | 26.952 | 29.947 | 32.947 | 35.94 | 38.94 | 41.937 | 44.937 | 47.929 | 51.929 |
| Thread Length (b) For lengths < or = 125mm For lengths > 125mm <= 200mm For lengths > 200mm | 14 | 16 | 18 | 22 | 26 | 30 | 34 | 38 | 42 | 46 | 50 | 54 | 60 | 66 | Not specified as full thread recommended | ||||||
| 20 | 22 | 24 | 28 | 32 | 36 | 40 | 44 | 48 | 52 | 56 | 60 | 66 | 72 | 78 | 84 | 90 | 96 | 102 | 108 | 116 | |
| 33 | 35 | 37 | 41 | 45 | 49 | 53 | 57 | 61 | 65 | 69 | 73 | 79 | 85 | 91 | 97 | 103 | 109 | 115 | 121 | 129 | |
Carbon Steel 12.9 fasteners are extensively used in processes where superior strength and durability are needed. They are best suited for high-stress situations, like automotive, aerospace, and heavy machinery sectors, where they hold key parts under severe conditions. Carbon Steel 12.9 fasteners are also used in construction projects, such as bridges and structural supports, as a result of their capacity to support heavy loads. In manufacturing, they are often applied in assembling industrial machines and equipment. Their resistance to wear and high tensile strength render them crucial in marine uses, oil and gas sectors, and power plants.
