Shalan Steel is a prominent producer and supplier of Carbon Steel Buttweld Pipe Fittings in Kuala lumpur, Malaysia, famous for providing top-notch, long-lasting, and precision-made fittings. With a relentless pursuit of excellence, we serve various industries, such as oil & gas, petrochemicals, construction, and power generation. Our buttweld fittings are crafted for greater strength, corrosion resistance, and flawless performance, ensuring reliability in demanding applications. Supported by experience and technology, Shalan Steel is your reliable source for quality carbon steel fittings in the Malaysia.
Carbon Steel Buttweld Pipe Fittings are largely made up of iron and carbon, and elements such as manganese, silicon, and sulfur are added to increase strength and longevity. They possess superior mechanical properties such as high yield and tensile strength, impact resistance, and toughness, thus ideal for applications involving high pressure. They provide benefits such as better weldability, affordability, and durability. Their seamless construction provides leak-proof, heavy-duty connections, minimizing the need for maintenance. Commonly applied in oil & gas, petrochemicals, and construction, they are offering sound performance in severe environments.
| Pipe Fittings Specifications | ASTM A234/ ASME SA234 |
|---|---|
| Carbon Steel Pipe Fittings size | Seamless Butt Weld Fittings : 1/2″ – 10″ Welded Butt Weld Fittings : 1/2″ – 48″ |
| CS Pipe Fittings Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1800, BS10 |
| Buttweld Fittings Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Buttweld Pipe FittingsType | DN15-DN1200 |
| ASTM A234 Buttweld Fitting Connection | Welding |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom ASTM A234 Pipe Fitting |
| Size Range | ½” NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) ASTM A234 Buttweld Fitting |
| ASTM A234 Buttweld Fittings Manufacturing process | Push, Press, Forge, Cast, etc. |
| Carbon Steel Buttweld Pipe Fittings Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| SA 234 Pipe Fittings Origin & Mills | Japanese, Indian, USA, Korean, European, Ukraine, Russian |

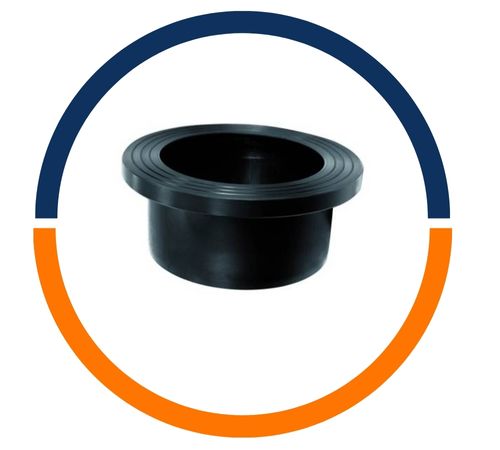

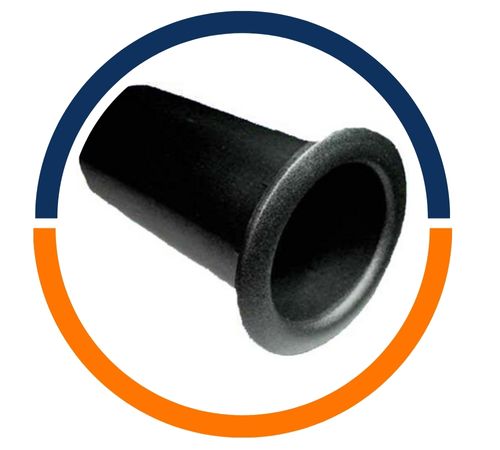

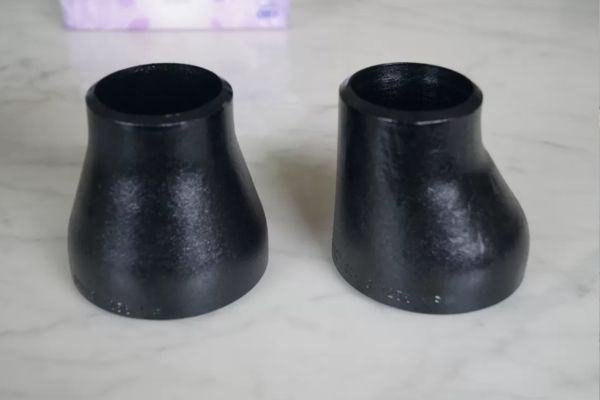

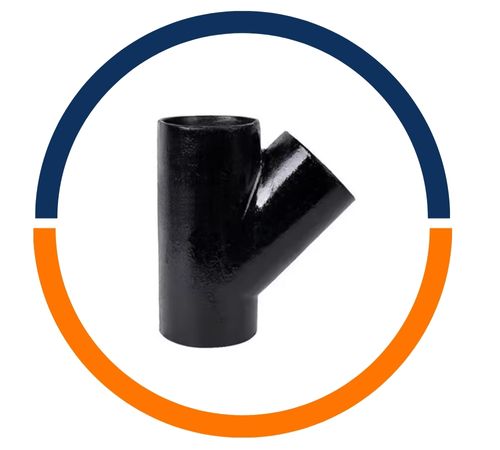

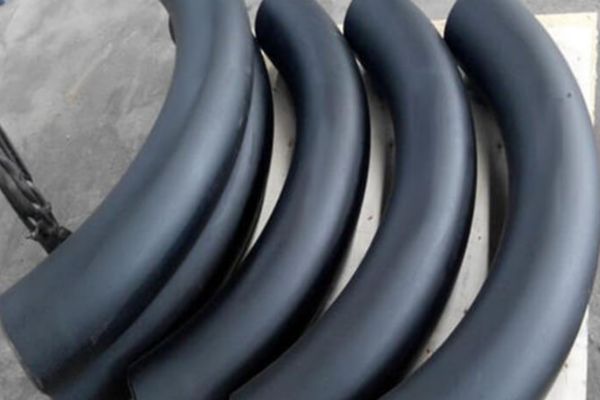

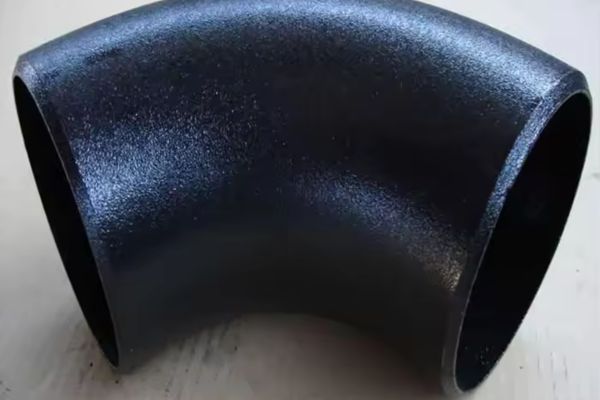

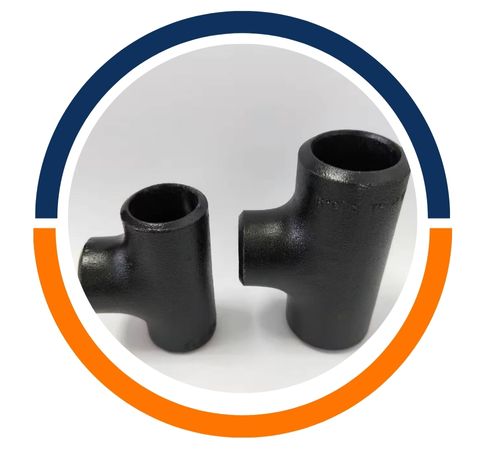

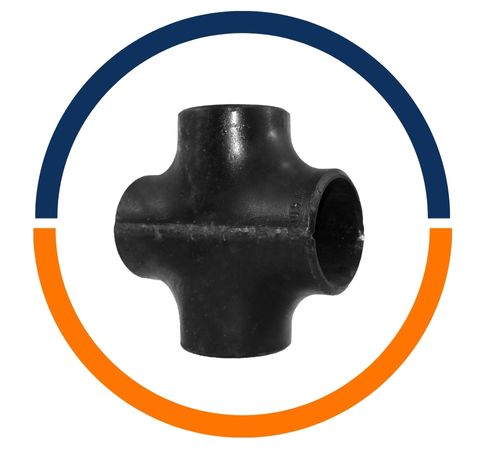

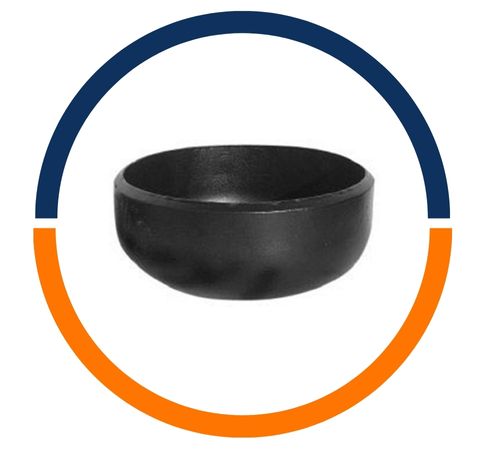

| Specialized manufacturer of | CS 90º Elbows, 45º Elbows, Tees, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend |
| Element | Carbon Steel Buttweld Fittings (% by weight) |
|---|---|
| Carbon (C) | 0.05% – 2.1% |
| Manganese (Mn) | 0.30% – 1.65% |
| Silicon (Si) | 0.15% – 0.60% |
| Phosphorus (P) | ≤ 0.035% |
| Sulfur (S) | ≤ 0.040% |
| Iron (Fe) | Remainder (balance) |
| Properties OF Carbon Steel Buttweld Pipe Fittings | Metric | Imperial |
| Tensile Strength For Carbon Steel | 595 MPa | 86300 psi |
| Yield Strength For CS | 260 MPa | 37700 psi |
| Elasticity Modulus | 200 GPa | 29000 ksi |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
| Elongation At break in 50 millimeter | 55% | 55% |
| Hardness And Rockwell B | 85 | 85 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| NPS (Normal Pipe Size) | O.D. (Outside Diameter) | Ave. I.D. (Inside Daimeter) | Minimum WALL | Normal Weight Chart | Maximum W.P. psi |
| 1/4″ | .540 | .344 | .088 | .086 | 780 |
| 3/8″ | .675 | .473 | .091 | .115 | 620 |
| 1/2″ | .840 | .602 | .109 | .170 | 590 |
| 3/4″ | 1.050 | .804 | .113 | .226 | 480 |
| 1″ | 1.315 | 1.029 | .133 | .333 | 450 |
| *1-1/4″ | 1.660 | 1.360 | .140 | .450 | 370 |
| *1-1/2″ | 1.900 | 1.590 | .145 | .537 | 330 |
| *2″ | 2.375 | 2.047 | .154 | .720 | 280 |
| 2-1/2″ | 2.875 | 2.445 | .203 | 1.136 | 300 |
| *3″ | 3.500 | 3.042 | .216 | 1.488 | 260 |
| 3-1/2″ | 4.000 | 3.521 | .226 | 1.789 | 240 |
| *4″ | 4.500 | 3.998 | .237 | 2.118 | 220 |
| 5″ | 5.563 | 5.016 | .258 | 2.874 | 190 |
| *6″ | 6.625 | 6.031 | .280 | 3.733 | 180 |
| *8″ | 8.625 | 7.942 | .322 | 5.619 | 160 |
| *10″ | 10.750 | 9.976 | .365 | 7.966 | 140 |
| *12″ | 12.750 | 11.889 | .406 | 10.534 | 130 |
| *14″ | 14.000 | 13.073 | .437 | 12.462 | 130 |
| *16″ | 16.000 | 14.940 | .500 | 16.286 | 130 |
| *18″ | 18.000 | 16.809 | .562 | 20.587 | 130 |
| *20″ | 20.000 | 18.743 | .593 | 24.183 | 120 |
| *24″ | 24.000 | 22.544 | .687 | 33.652 | 120 |
| Pressure-Temperature ratings for ASME B16.9 Carbon Steel Buttweld Pipe Fittings (psig) | |||||
|---|---|---|---|---|---|
| Temperature Ratings | Pressure Class | ||||
| 150 | 300 | ||||
| 1/4 – 1 Inches | 1 1/4 – 2 Inches | 2 1/2 – 3 Inches | |||
| (oF) | (oC) | ||||
| -20 to 150 | -29 to 66 | 300 | 2000 | 1500 | 1000 |
| 200 | 93 | 265 | 1785 | 1350 | 910 |
| 250 | 121 | 225 | 1575 | 1200 | 825 |
| 300 | 149 | 185 | 1360 | 1050 | 735 |
| 350 | 177 | 150 | 1150 | 900 | 650 |
| 400 | 204 | – | 935 | 750 | 560 |
| 450 | 232 | – | 725 | 600 | 475 |
| 500 | 260 | – | 510 | 450 | 385 |
| 550 | 288 | – | 300 | 300 | 300 |
Shalan Steel is a top manufacturer and supplier of high-quality Carbon Steel Buttweld Pipe Fittings products in Kuala lumpur, Malaysia. Specializing in steel solutions, we provide a wide range of products, including Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel. Our offerings include Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates. Known for our reliable delivery and superior customer service, we are committed to offering top-tier steel materials that ensure durability and performance across a wide range of industrial applications. We strive to meet the highest standards, making us a trusted partner for all your steel needs.
Carbon steel buttweld pipe fittings are found in common application in industries for their durability, strength, and affordability. They offer safe connections in piping systems, especially in oil, gas, petrochemical, power plants, and construction. Fittings are applied for the construction of bends, tees, reducers, and caps in pipes, facilitating easy flow and pressure control. They are resistant to corrosion and withstand high temperatures due to their superior quality, thus making them perfect for heavy-duty use. They provide long-term and leak-free performance for critical systems.
