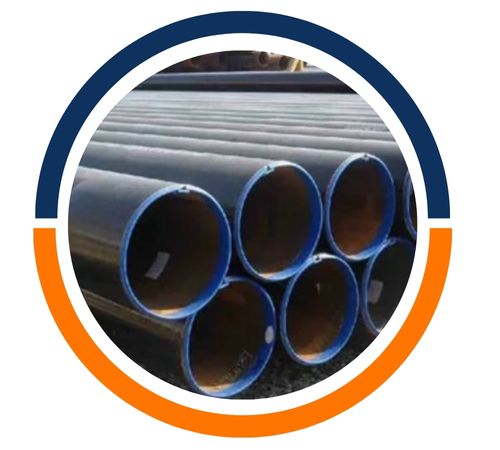

Shalan Steel, a top-notch manufacturer and supplier based in Kuala Lumpur, Malaysia, specializes in high-quality J356 Tubing designed for exceptional strength, durability, and outstanding machinability. This tubing is crafted in line with SAE J356 standards and is commonly utilized in demanding hydraulic, automotive, and industrial settings. Shalan Steel guarantees precise dimensional tolerances, smooth internal surfaces, and consistent quality, making these tubes perfect for pressure lines, fluid transfer systems, and mechanical components where performance and reliability are essential.
Typically made from high-quality carbon steel with carefully controlled levels of carbon, manganese, phosphorus, and sulfur, J356 Tubing achieves the necessary mechanical properties. It boasts impressive yield and tensile strength, remarkable toughness, and excellent resistance to wear and fatigue. The tubing undergoes cold-drawing and stress-relieving processes to enhance machinability, dimensional stability, and surface finish, ensuring easy fabrication and assembly.
| Grade: | ASME/ASTM SA179, SA192, SA210, SA178, SA214, API 5L |
|---|---|
| Size: | 1/8” NB TO 24” NB Sch 40/80/160/XXS |
| Form | Round, Square, Rectangular, Coil, U Tube, |
| Length | Single Random, Double Random & Required Length |
| End | Plain End, Bevelled End |
| Type | Seamless / ERW / Welded |
| Certification For Carbon | Mill Test Certificate as per EN 10204 / 3.2B |
| General Requirements | ASTM A 530/A 530M |
| Dimensional Tolerances | ANSI B 36.10 |
| OD Range | 1.250″ – 6.000″ (30-150mm) |
| Wall Range | 0.095″ – 1.000″ (.2.5-25mm) |
| CHEMICAL REQUIREMENTS | ||
| Element | Cast or Heat Analysis: Weight % | |
| J356 | J356 Type-A | |
| Carbon | 0.06 Min/0.18 Max | 0.02 Min/0.18 Max |
| Manganese | 0.30 Min/0.60 Max | 0.10 Min/0.60 Max |
| Phosphorus | 0.04 Max | 0.04 Max |
| Sulfur | 0.06 Max | 0.05 Max |
| MECHANICAL PROPERTIES | |
| Properties | Values |
| Yield Strength (Min) | 25,000 PSI |
| Tensile Strength (Min.) | 45,000 PSI |
| Elongation in 2” (Min) | 35% a |
| Hardness (Rockwell B)(Max) | 65 b |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| TUBING WALL THICKNESS TOLERANCES | |||
|---|---|---|---|
| Nominal Wall Thickness (Inches) |
Nominal Tube OD Through 1” (+/- Inches) |
Nominal Tube OD Over 1” Through 2” (+/- Inches) |
Nominal Tube OD Over 2” Through 4” (+/- Inches) |
| .028 (22 Ga) | .002/.003 | .003/.003 | .003/.003 |
| .035 (20 Ga) | .002/.004 | .002/.004 | .002/.004 |
| .042 (19 Ga) | .002/.004 | .002/.004 | .002/.005 |
| .049 (18 Ga) | .004/.005 | .003/.005 | .004/.008 |
| .058 (17 Ga) | .006/.006 | .004/.008 | .004/.008 |
| .065 (16 Ga) | .006/.006 | .004/.008 | .004/.008 |
| .072 (15 Ga) | .006/.010 | .006/.010 | .006/.010 |
| .083 (14 Ga) | .006/.010 | .006/.010 | .006/.010 |
| .095 (13 Ga) | .006/.010 | .006/.010 | .006/.010 |
| .100 | .006/.010 | .006/.010 | .006/.010 |
| .109 (12 Ga) | .006/.010 | .006/.010 | .006/.010 |
| .118 | .006/.010 | .006/.010 | .006/.010 |
| .120 (11 Ga) | .006/.010 | .006/.010 | .006/.010 |
| .134 (10 Ga) | .006/.010 | .006/.010 | .006/.010 |
| .148 (9 Ga) | — | .007/.001 | .007/.011 |
| .156 (5/32) | — | .007/.011 | .007/.011 |
| .165 (8 Ga) | — | .007/.011 | .007/.011 |
| .180 (7 Ga) | — | .007/.011 | .007/.011 |
| .197 | — | .008/0.12 | .008/0.12 |
| .203 (6 Ga) | — | .008/0.12 | .008/0.12 |
| .219 (7/32) | — | .008/.012 | .008/.012 |
| .236 | — | .014/.018 | .014/.018 |
| .238 (4 Ga) | — | .014/.018 | .014/.018 |
| .259 (3 Ga) | — | .014/.020 | .014/.020 |
This tubing finds extensive use in hydraulic systems, automotive brake lines, fuel lines, mechanical equipment, and various precision-engineered applications. Its ability to endure high pressure, resist corrosion with the right coating, and maintain dimensional accuracy over time makes it a go-to choice for critical systems. With its blend of strength, machinability, and reliability, J356 Tubing from Shalan Steel provides dependable performance across a wide array of industrial sectors.
Shalan Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Kuala lumpur, Malaysia.
