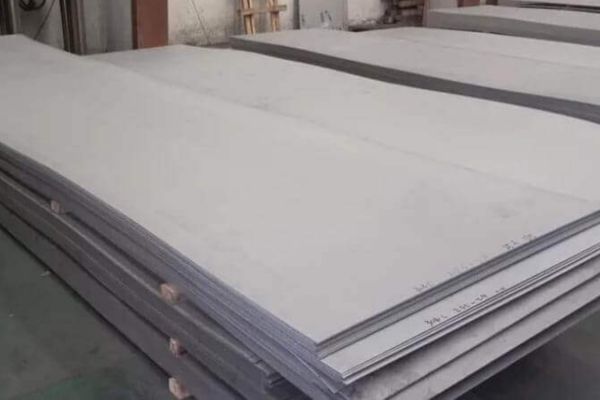

Shalan Steel is a reliable shipbuilding steel sheet and plate manufacturer and supplier in Kuala lumpur, Malaysia. We are experts in offering high-strength, corrosion-resistant, and long-lasting steel solutions for the marine and offshore sectors. Our shipbuilding steel is specifically made for hulls, decks, bulkheads, and superstructures to provide superior weldability, impact resistance, and durability in harsh conditions. Dedicated to quality, reliability, and cost competitiveness, Shalan Steel provides certified and industry-standard steel products to meet the stringent requirements of shipbuilders and marine engineers.
Shipbuilding steel sheets and plates are usually 0.05-0.23% carbon, 0.30-1.60% manganese, with traces of phosphorus, sulfur, and silicon, and are characterized by their excellent strength and corrosion resistance. Their mechanical strength is a tensile strength of 400-600 MPa, yield strength of 235-355 MPa, and good impact endurance. Their merits are high durability, good weldability, and resistance to abrasive marine conditions and are thus perfectly suited for use in hulls, decks, and offshore construction. These characteristics provide structural integrity, safety, and durability in applications to shipbuilding.
Weight | Up to 40 ton |
| Width | 1500-4000 |
| Thickness | 4-200 mm |
grades | EH36, DH36, AH36, DH32, E32, A40, B, EH32, E36, A36, F40, D40, E, AH40, E40, A, A32, DH40, D36, D, AH32, EH40, D32, and their equivalents |
| Length | Up to 20000 |

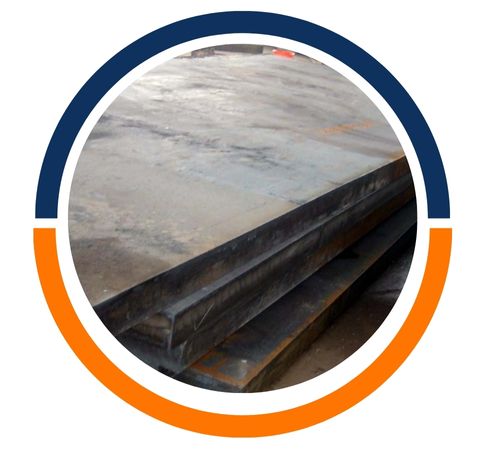

| Delivery condition | quenched and tempered, Hot-rolled, normalised rolled or normalised, thermomechanically rolled |
| Grade | C%≤ | Al % | Mn % | p % ≤ | S % ≤ | Si % | Nb % | V % |
|---|---|---|---|---|---|---|---|---|
| D32 A32 E32 | 0.18 | ≥0.015 | 0.70~1.60 0.90~1.60 0.90~1.60 | 0.04 | 0.04 | 0.10~0.50 | — | — |
| A | 0.22 | — | ≥ 2.5C | 0.04 | 0.40 | 0.10~0.35 | — | — |
| B | 0.21 | — | 0.60~1.00 | 0.04 | 0.40 | 0.10~0.35 | — | — |
| E | 0.18 | ≥0.015 | 0.70~1.20 | 0.04 | 0.04 | 0.10~0.35 | — |  |
| D36 A36 E36 | 0.18 | ≥0.015 | 0.70~1.60 0.90~1.60 0.90~1.60 | 0.04 | 0.04 | 0.10~0.50 | 0.015~0.050 | 0.030~0.10 |
| D | 0.21 | ≥0.015 | 0.60~1.00 | 0.04 | 0.04 | 0.10~0.35 | — | — |
| Grade | Yieldpoint (Mpa) ≥ | Tensile Strength (Mpa) | Elongation （%）≥ | cold bend test | Thickness (mm) | V-impact test | |||
|---|---|---|---|---|---|---|---|---|---|
| b=5a 120° | b=2a 180° | Temperature （℃） | Average AKV A kv /J | ||||||
| lengthways | crosswise | ||||||||
| ≥ | |||||||||
| A | 235 | 400~490 | 22 | — | d=2a | ≤50 mm | — | — | — |
| B | d=3a | — | 0 | 27 | 20 | ||||
| D | -10 | ||||||||
| E | -40 | ||||||||
| A32 | 315 | 440~590 | 22 | d=3a | — | ≤50 mm | 0 | 31 | 22 |
| D32 | -20 | ||||||||
| E32 | -40 | ||||||||
| A36 | 355 | 490~620 | 21 | d=3a | — | ≤50 mm | 0 | 34 | 24 |
| D36 | -20 | ||||||||
| E36 | -40 | ||||||||
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Shalan Steel is one of the most prominent manufacturers and suppliers of superior quality Shipbuilding Steel Sheet and Plate in Kuala lumpur, Malaysia. As experts in steel solutions, we supply a complete spectrum of products like Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our product range comprises Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Known for our reliable delivery and first-rate customer service, we are committed to supplying high-quality steel materials that guarantee durability and excellent performance in numerous industrial applications.Â

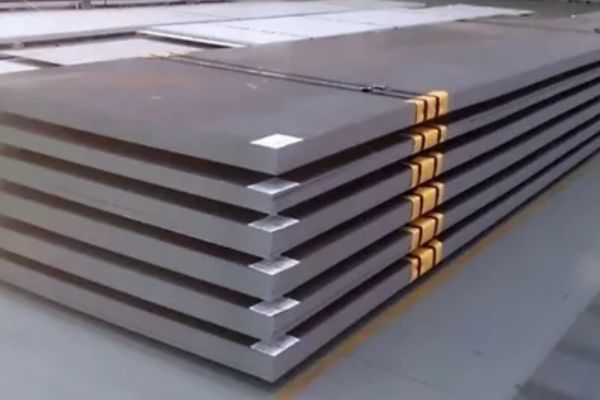

| Grade | Maximum Thickness (mm) | Standard | Minimum Thickness (mm) |
|---|---|---|---|

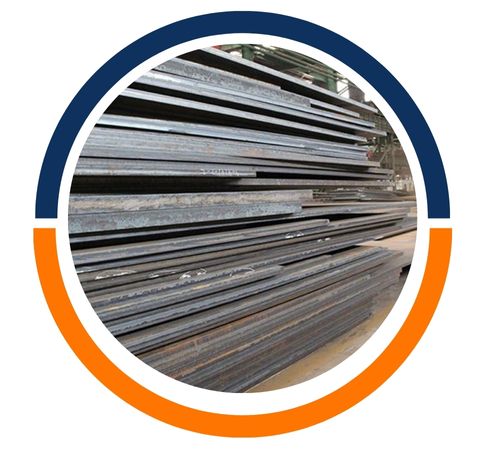

| EH36 | 150 mm | Lloyds Register | 5 mm |

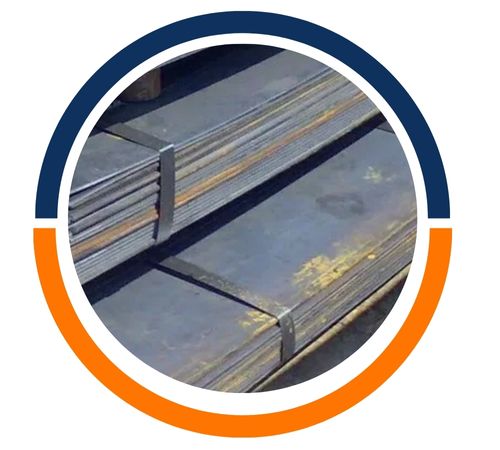

| AH36 | 150 mm | Lloyds Register | 5 mm |

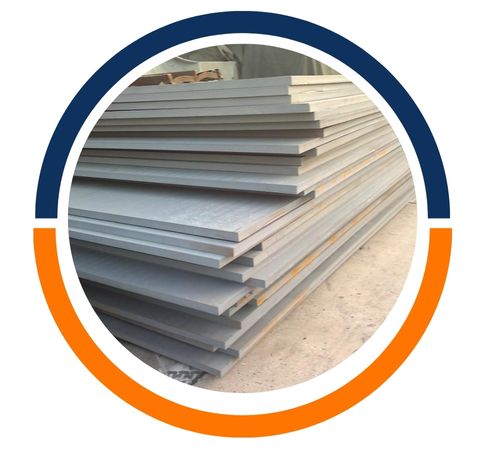

| Grade A | 150 mm | Lloyds Register | 5 mm |
| DH36 | 150 mm | Lloyds Register | 5 mm |
| theoretical weight | Thickness (mm) | Thickness (mm) | theoretical weight | ||
|---|---|---|---|---|---|
| Kg/m2 | Kg/ft2 | Kg/m2 | Kg/ ft2 | ||
| 47.10 | 4.376 Kg/ft2 | 6 | 25 | 196.25 | 18.962 Kg/ ft2 |
| 54.95 | 5.105 Kg/ft2 | 7 | 26 | 204.10 | 20.420 Kg/ ft2 |
| 86.35 | 8.751 Kg/ft2 | 11 | 32 | 251.20 | 25.525 Kg/ ft2 |
| 172.70 | 16.044 Kg/ft2 | 22 | 50 | 392.50 | 36.464 Kg/ ft2 |
| 62.80 | 5.834 Kg/ft2 | 8 | 28 | 219.80 | 21.879 Kg/ ft2 |
| 157.00 | 14.586 Kg/ft2 | 20 | 48 mm | 376.80 | 35.006 Kg/ ft2 |
| 78.50 | 7.293 Kg/ft2 | 10 | 30 mm | 235.50 | 23.337 Kg/ ft2 |
| 94.20 | 10.21 Kg/ft2 | 12 | 34 mm | 266.90 | 26.254 Kg/ ft2 |
| 125.60 | 11.669 Kg/ft2 | 16 | 40 mm | 314.00 | 29.172 Kg/ ft2 |
| 141.30 | 13.127 Kg/ft2 | 18 | 45 mm | 353.25 | 32.818 Kg/ ft2 |
| 109.90 | 10.939 Kg/ft2 | 14 | 35 mm | 274.75 | 27.713 Kg/ ft2 |
| 188.40 | 18.232 Kg/ft2 | 24 | Â | Â | Â |
| Max. width | Thickness |
|---|---|
| Grade A | From to up to |
| 1370 | 1.70 to 1.80 |
| 1280 | 1.60 to 1.70 |
| 1440 | 1.80 to 1.90 |
| 1520 | 1.90 to 2.00 |
| 1170 | 1.49 to 1.60 |
| 2070 | 12.70 to 20.00 |
| 1590 | 2.00 to 2.20 |
| 1730 | 2.20 to 2.40 |
| 1880 | 2.60 to 2.80 |
| 1960 | 2.80 to 3.12 |
| 1800 | 2.40 to 2.60 |
| 2070 | 3.12 to 12.70 |

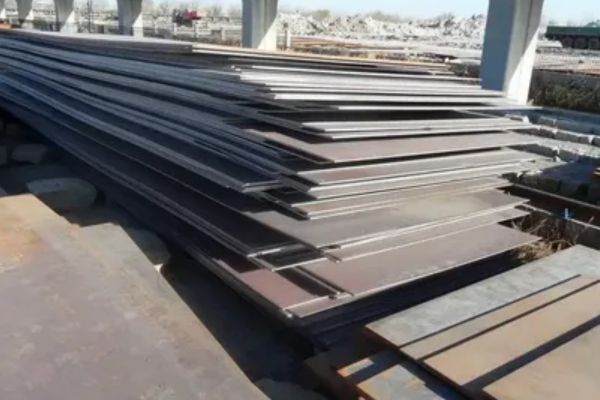

Shipbuilding steel plates and sheets are used to build hulls, decks, bulkheads, and superstructures of ships and boats. They have high strength, corrosion resistance, and good weldability, which makes them durable in the tough marine environment. Steel plates are extensively used in cargo vessels, oil tankers, naval ships, and offshore platforms such as rigs and platforms. Built to be highly stressed, impacted, and saltwater-corrosion-resistant, shipbuilding steel provides structural integrity, safety, and durability in marine uses, conforming to stringent industry standards.
