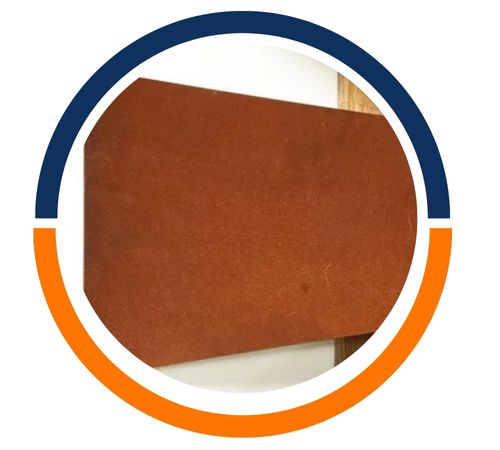

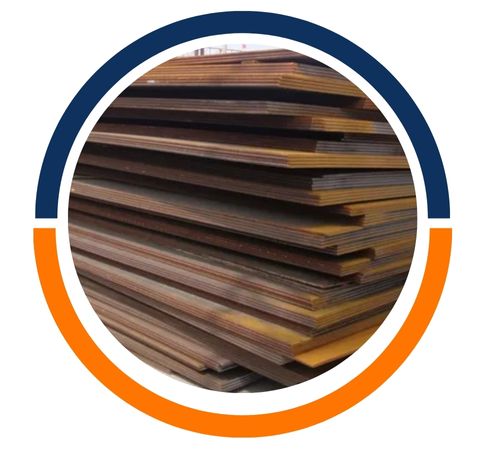

Corten Steel Sheet and Plate is a remarkable type of weather-resistant steel, celebrated for its distinctive ability to develop a stable, rust-like finish when exposed to the elements. Shalan Steel, a reputable supplier and manufacturer located in Kuala Lumpur, Malaysia, provides top-notch Corten steel products that are perfect for architectural, structural, and industrial applications. This steel is designed to eliminate the hassle of painting and minimize maintenance, as it forms a protective oxide layer that effectively resists atmospheric corrosion. Shalan Steel offers both Corten A and Corten B grades, catering to the diverse needs of construction, landscaping, and outdoor design projects, all while ensuring timely delivery and expert assistance.
Corten Steel is composed of copper, chromium, nickel, and phosphorus, which work together to create a protective rust layer that slows down further corrosion. Corten A generally has a higher phosphorus content, enhancing its resistance to atmospheric conditions, while Corten B is known for its superior mechanical strength, making it ideal for structural uses. These plates boast yield strengths around 345 MPa and tensile strengths ranging from 470 to 630 MPa, depending on the grade and thickness. Corten steel is also known for its good weldability and machinability. Once it’s exposed to the weather, it develops a dense patina that tightly adheres to the surface, preventing deeper corrosion and prolonging the lifespan of the structure.
Materials : Corten Steel Sheet/Plates
Standard : ASTM A588 / ASME SA588
Width : 750mm TO 1500mm
Length : 2500mm to 12000mm
Thickness : 0.8mm TO 50mm
Type : Corten Steel / High-Strength Low-alloy Structural Steel
Process : Hot-Rolled (HR)
| Corten – A Plates | ASTM 588 GR A | ASTM 242 TYPE -1 | IRSM 41 -97 | |
|---|---|---|---|---|
| Carbon, Max | 0.12 | 0.19 | 0.15 | 0.10 |
| Manganese | 0.20-50 | 0.80-1.25 | 1.00 | 0.25-0.45 |
| Phosphorus | 0.07-0.15 | 0.04 | 0.15 | 0.07-0.11 |
| Sulphur, max | 0.030 | 0.05 | 0.05 | 0.030 |
| Silicon | 0.25-0.75 | 0.30-0.65 | 0.25-0.40 | 0.28-0.72 |
| Nickel, max | 0.65 | 0.40 | – | 0.20-0.49 |
| Chromium | 0.50-1.25 | 0.40-065 | – | 0.30-0.50 |
| Molybdenum, max | – | – | – | – |
| Copper | 0.25-0.55 | 0.25-0.40 | 0.20 min | 0.30-0.39 |
| Vanadium | – | 0.02-0.10 | – | 0.050 |
| Aluminimum | – | … | – | 0.030 |
| Tensile Strength | Min. Yield Point | Elongation | |
|---|---|---|---|
| COR-TEN A | [470 – 630 MPa] | [355 MPa] | 20 % min |
| ASTM 588 GR. A | [485 MPa] | [345 MPa] | 21% min |
| ASTM 242 TYPE -1 | [480 MPa] | [345 MPa] | 16% min |
| Material # | EN 10155 | SEW 087 | NFA 35-502 | UNI | BS 4360 | ASTM | JIS G3114 |
|---|---|---|---|---|---|---|---|
| 1.8961 | S235J2W | WTSt 37-3 | E 24 W 4 | Fe 360 DK 1 | – | – | – |
| 1.8945 | S355J0WP | E 36 WA 3 | Fe 510 C1K1 | WR 50 A | – | – | – |
| 1.8946 | S355J2WP | – | E 36 WA 4 | Fe 510 D1K1 | – | A 242 Type 1 | – |
| 1.8959 | S355J0W | – | E 36 WB 3 | Fe 510 C2K1 | WR 50 B | A 588 – A 242 Gr. 1 | SMA 50 AW |
| 1.8963 | S355J2G1W | WTSt 52-3 | – | Fe 510 D2K1 | WR 50 C | A 588 Gr. A | to |
| 1.8965 | S355J2G2W | – | – | – | – | – | SMA 50 CP |
| 1.8966 | S355K2G1W | – | E 36 WB 4 | – | – | A 709 Gr. 50 W | – |
| 1.8967 | S355K2G2W | – | – | – | – | – | – |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Corten Steel Sheet and Plate finds its way into a variety of applications, including architectural facades, bridges, sculptures, shipping containers, and structural elements that are exposed to the environment. Its rustic look and durability make it a favorite in landscape design for retaining walls, fences, and outdoor furniture. In industrial settings, it’s utilized for chimneys, railcars, and structural supports that demand low maintenance and resilience against atmospheric conditions. The self-protecting nature of Corten steel means less need for coatings or painting, making it a sustainable and cost-effective choice.
| Thickness | Width | Length |
|---|---|---|
| 1/2 inch | 48.00 inch | 120.00 inch |
| 1/4 inch | 60.00 inch | 120.00 inch |
| 1/4 inch | 48.00 inch | 120.00 inch |
| 3/8 inch | 48.00 inch | 120.00 inch |
| Thickness | Weight (lbs/ft) |
|---|---|
| 3/8″ | 15.315 |
| 1/4″ | 10.210 |
| 1/4″ | 10.210 |
| 1/2″ | 20.420 |
| FINISH | STOCK | SHEET SIZE MM | THICKNESS MM |
|---|---|---|---|
| Bright | Natural | 3000 x 1500, 2500 x 1250 | 0.8 – 3.0 |

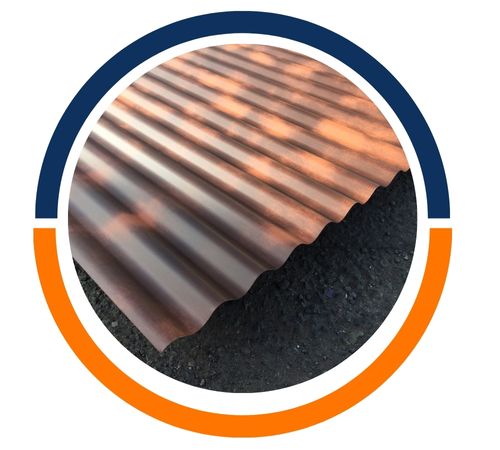

| Bright | Corrugated | 3000 x 1110 | 0.8 |
| Bright | Natural | 2500 x 1250 | 1 |
| Patina Rust (to order) | Rusted | 3000 x 1500, 2500 x 1250 | 0.8 – 3.0 |
| Patina Rust (to order) | Rusted | 2500 x 1250 | 1 |
| Rusted (to order) | Corrugated | 3000 x 1110 | 0.8 |
Corten steel plates and sheets are extensively applied in construction, architecture, and industry because of their durability and corrosion resistance. They are used in building facades, bridges, roofing, and outdoor sculptures, providing a modern yet rustic look. In landscaping, they form retaining walls, planters, and decorative panels. Corten steel also finds application in marine structures, railway wagons, and containers because it has resistance to the harsh weather environment. Its patina self-healing property reduces maintenance, so it is good for long-lasting applications.
