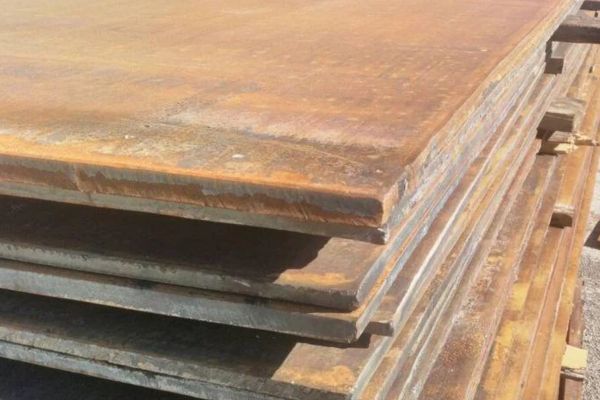

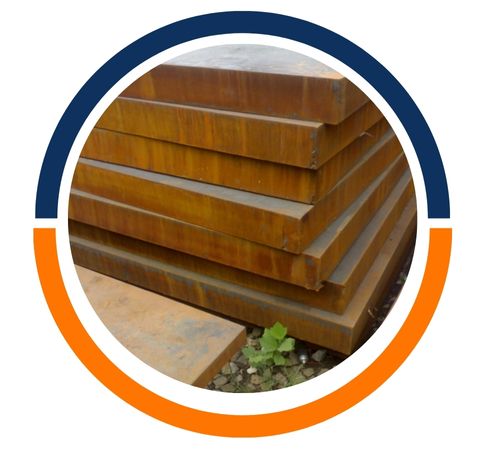

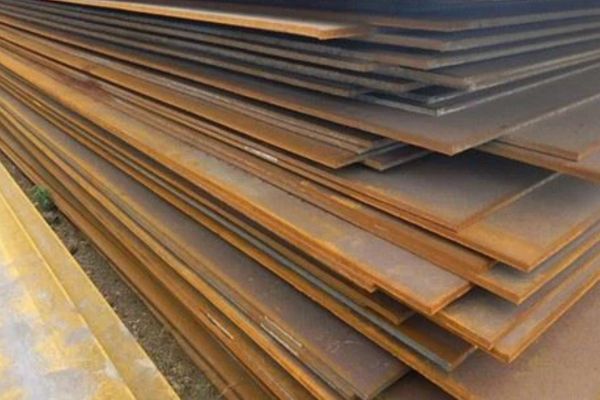

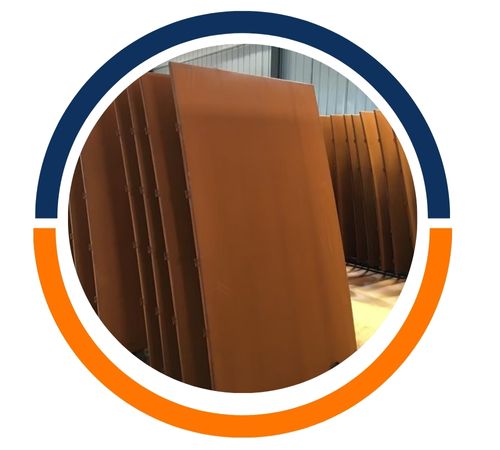

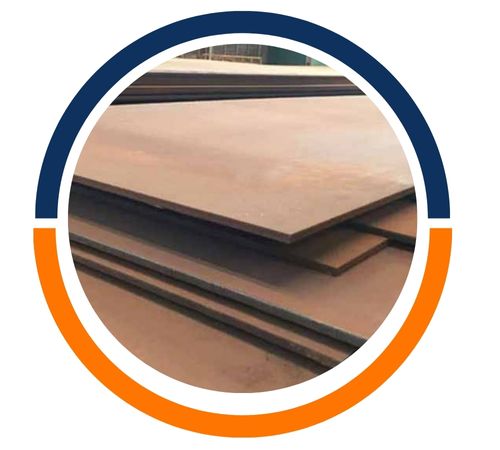

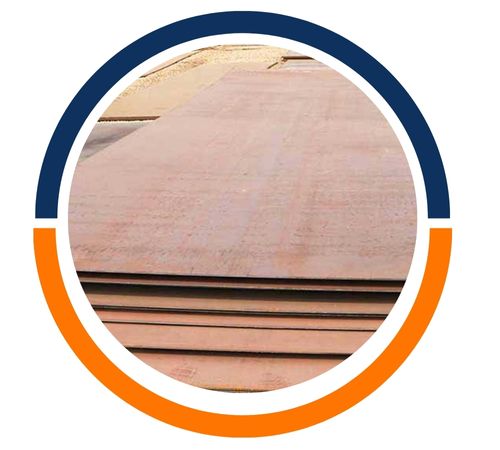

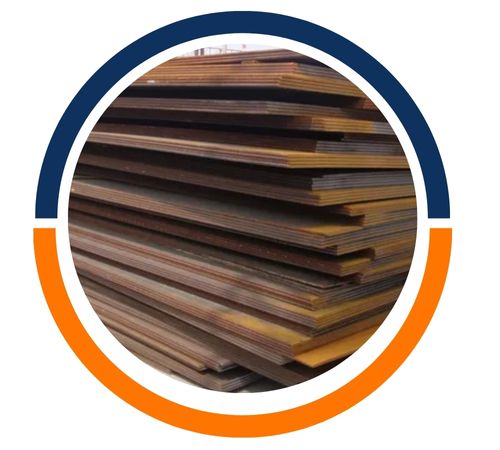

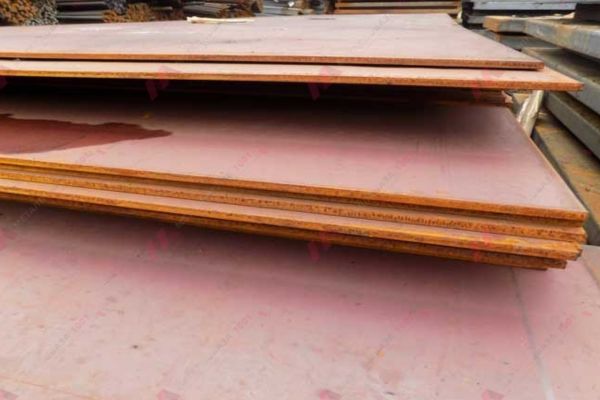

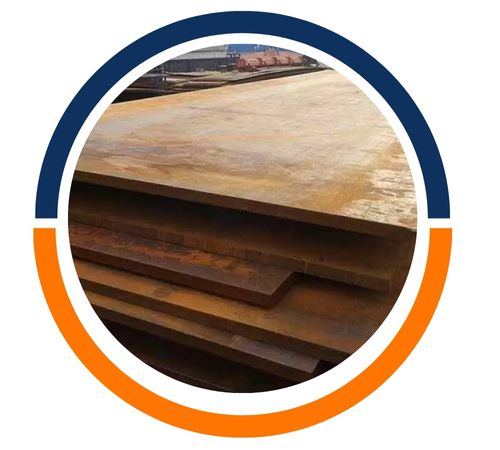

Corten Steel S355JOW Sheet and Plate is a robust, weathering steel product crafted to provide outstanding corrosion resistance and a long lifespan in outdoor settings. Shalan Steel, a trusted manufacturer and supplier located in Kuala Lumpur, Malaysia, offers premium S355JOW plates and sheets ideal for construction, structural, and architectural projects. When exposed to the elements, these plates develop a protective rust-like patina, which means you won’t have to worry about painting or constant upkeep. Shalan Steel is committed to delivering high-performance steel products that meet international standards, ensuring reliable supply and service for customers throughout Malaysia and Southeast Asia.
S355JOW is a type of weathering steel known for its superior resistance to atmospheric corrosion, thanks to its unique chemical makeup that includes copper, chromium, nickel, and phosphorus. It boasts a minimum yield strength of 355 MPa and tensile strength that ranges from 470 to 630 MPa. When exposed to the atmosphere, the alloy forms a stable oxide layer (patina) on its surface, which helps prevent deeper corrosion. These plates are not only excellent in terms of weldability and formability but are also supplied in a hot-rolled condition. S355JOW adheres to EN 10025-5 standards and comes in various thicknesses and dimensions to meet a wide array of design and structural needs.
Grade : S355JOW Corten Steel Plates
Standard : ASTM A588, A242 / ASME SA588, SA242
Width : 750mm to 1500mm,
Length : 2500mm to 12000mm
Thickness : 3MM to 50mm
Type : Corten Steel / High-Strength Low-alloy Structural Steel
Process : Hot-Rolled (HR)
|
Grade |
C |
Si |
Mn |
P |
S |
N |
Addition of nitrogen binding elements |
Cr |
Cu |
|
S355J0W |
0.16 |
0.50 |
0.50/1.50 |
0.035 |
0.035 |
0.009 |
– |
0.40/0.80 |
0.25/0.55 |
|
Grade |
Min. Yield Strength Reh MPa |
Tensile Strength Rm MPa |
|||||||
|
Nominal Thickness (mm) |
Nominal Thickness (mm) |
||||||||
|
≤16 |
>16 ≤40 |
>40 ≤63 |
>63 ≤80 |
>80 ≤100 |
>100 ≤150 |
>3 |
>3 ≤100 |
>100 ≤150 |
|
|
S355J0W |
355 |
345 |
335 |
325 |
315 |
295 |
510/680 |
470/630 |
450/600 |
Grade | Material # | EN 10155 | SEW 087 | NFA 35-502 | UNI | BS 4360 | ASTM | JISG3114 |
S355JOW | 1.8959 | S355J0W | – | E 36 WB 3 | Fe 510 C2K1 | WR 50 B | A588 – A242 Gr. 1 | SMA 50 AW |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Corten Steel S355JOW plate and sheet are extensively applied in building construction, architecture, and industry on account of their superior weather resistance and durability. They can be suitably employed for bridge building, facades, cladding, and outdoor sculptures, as they form a protective rust layer, which does not allow corrosion. They are also employed in the application of railway wagons, shipping containers, and structural engineering projects. Their low maintenance and high strength make them ideal for extreme environments, minimizing the requirement for painting and other coatings, providing long-term performance.
